Shield Window SW
Shield Window SW 版型
- Mesh
Product Overview
- Clear resin panel with special conductive mesh
- Perfect for shielding openings, such as window and display
- Flame-resistant grade panel types are also available
Product Description
- Shield Window
- Integral molding of clear resin panel and special conductive mesh
- Perfect for shielding openings which require permeability
- Flame-resistant grade polycarbonate panel types are also available
- RoHS compliant

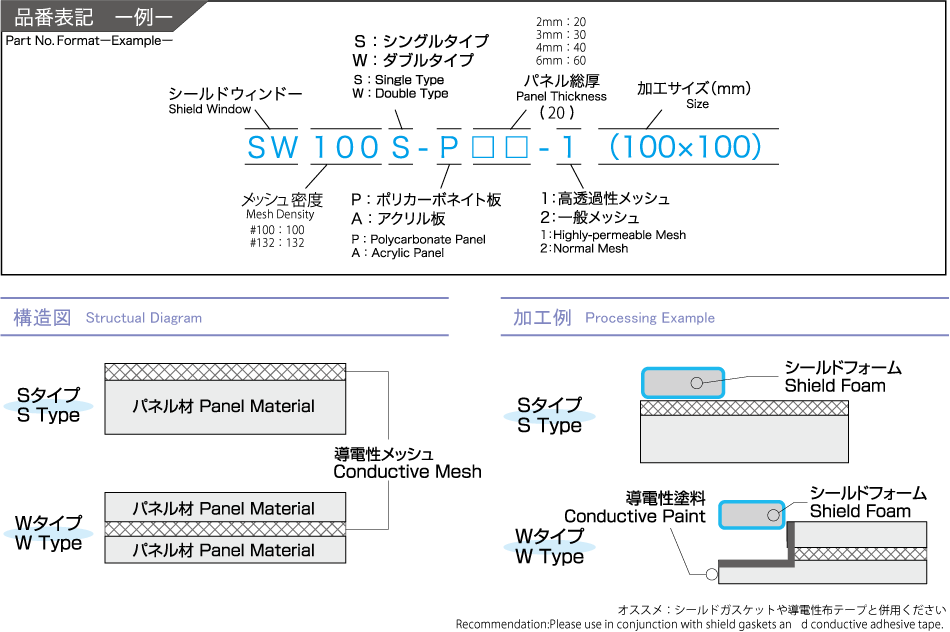

| Construction Type | Mesh Type | Mesh Density | Material | Panel Thickness (Choose) | Total Light Transmittance |
|---|---|---|---|---|---|
| S：Single | 1：Highly-permeable Mesh | #100 | P：Polycarbonate Panel | 3mm | ＞65％ |
| A：Acrylic Panel | 2mm／3mm | ||||
| 2：Standard Mesh | #132 | P：Polycarbonate Panel | 3mm | ＞58％ | |
| A：Acrylic Panel | 2mm／3mm | ||||
| W：Double | 1：Highly-permeable Mesh | #100 | P：Polycarbonate Panel | 6mm | ＞59％ |
| 2：Standard Mesh | #132 | P：Polycarbonate Panel | 6mm | ＞48％ |
