Dart Gasket CGC AGZ
Dart Gasket CGC AGZ 箭头型
- Conductive Fabric
Product Overview
- Gray
- Conductive soft gasket
- With arrowhead shape
Product Description
- CGC Gasket – Dart gasket, gray
- Polyurethane foam gasket wrapped in conductive fabric
- Easy installation
- Perfect for door application
- UL94 V-0 certified
- RoHS compliant
| Item Name | CGC AGZ | |
|---|---|---|
| Color | Gray | |
| Gasket | Conductive Layer | Polyester Cloth / Cu+Ni plated / Special Coating |
| Surface Resistivity | ≦0.05 Ω／□ | |
| Core Material | Polyurethane Foam | |
| Clip Material | ABS Resin | |
| Suitable Board Thickness | 0.8mm ～ 1.0mm | |
| Standard Length | 1m | |
| Note | ||
Product Composition

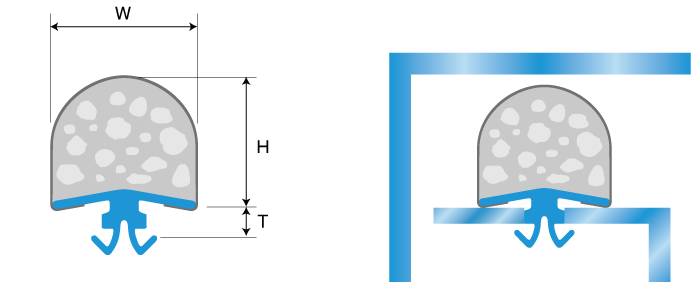

| Part No. | Size (mm) | ||
|---|---|---|---|
| W | H | T | |
| CGC AGZ7-2.3 | 7 | 2.3 | 1.2 |
| CGC AGZ7-2.8 | 7 | 2.8 | 1.2 |
| CGC AGZ7-6.6 | 7 | 6.6 | 1.2 |
