Shield Window Film SWF
Shield Window Film SWF Film Type
- Mesh
Product Overview
- High transmittance PET with special conductive mesh
- Combined process such as the addition of adhesive is possible
- Combined process such as the addition of panel is possible
Product Description

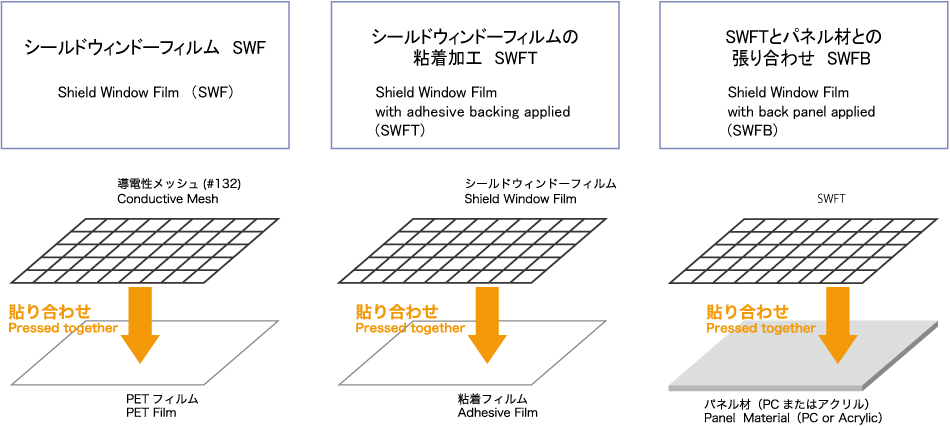

- Shield Window Film – The shielding, high transmittance window application
- SWF, high transmittance PET with special conductive mesh
- SWFT, SWF with adhesive tape backing applied
- SWFB, SWFT with back panel applied
- RoHS compliant
| Item Name | Shield Window Film |
|---|---|
| Total Thickness | 135μm |
| Mesh Density | #132 |
| Total Light Transmittance | ＞60％ |
| Note | The values above are typical value. |
Product Composition
| Item Name | Example Part No. | Note |
|---|---|---|
| Shield Window Film | SWF 132075 （※※※ ✕ ※※※） | ※：Product Size（mm） |
| Shield Window Film with Adhesive | SWFT 132075（※※※ ✕ ※※※） | ※：Product Size（mm） |
| Shield Window Film with Back Panel | SWFB 132075 □〇〇（※※※ ✕ ※※※） | □：Panel Type P：Polycarbonate A：Acrylic |
| 〇：Panel Thickness 1mm：10 2mm：20 3mm：30 |
||
| ※：Product Size（mm） |
Other Products Window
- Mesh
Shield Window SW
- Clear resin panel with special conductive mesh
- Perfect for shielding openings, such as window and display
- Flame-resistant grade panel types are also available
