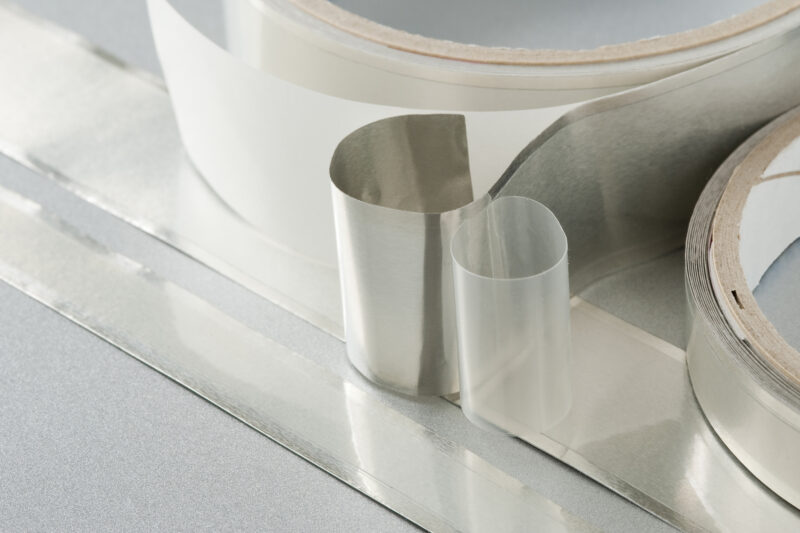

Conductive Masking Tape LM-044B-LF
Conductive Masking Tape LM-044B-LF Masking Tape
- Tin-plated Copper Foil
Product Overview
- Silver color
- Conductive masking tape
- With partially masked tin-plated copper foil
Product Description
- Conductive Masking Tape
- With partially masked tin-plated copper foil
- Peel off easily when heat is applied (150～180℃)
- RoHS compliant
| Item Name | LM-044B-LF | |
|---|---|---|
| Masking Film/th> | Material | Polyester Film |
| Thickness | 0.1mm | |
| Conductive Tape | Base Material | Tin-plated Copper Foil |
| Adhesive | Conductive Synthetic Resin Adhesive | |
| Total Thickness | 0.055mm | |
| Standard Length | 50m | |
| Note | Recommended Temp. for baking finish：150～180℃ | |
Product Size
| Item Name | Product Width | Masking Film Width |
|---|---|---|
| LM-044B-LF-13 | 13mm | 9mm |
| LM-044B-LF-20 | 20mm | 16mm |
| LM-044B-LF-25 | 25mm | 21mm |
