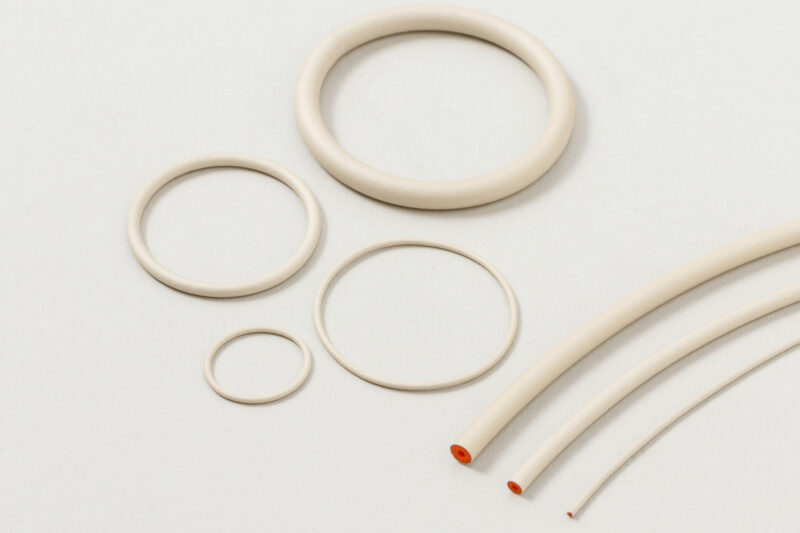

Ultra-Vanshield UV O ** J-03
Ultra-Vanshield UV O ** J-03 Standard Type
- Conductive Silicone
Product Overview
- Ivory white
- Dual-layer construction, conductive layer and non-conductive layer
- Standard type (with hollow)
Product Description
- Dual elastomer shielding gasket
- Usable in a wide range of thermal enviroments
- For shielding and enhancing board-to-case conductivity
- RoHS compliant
| Item Name | UV O＊＊J-03 | |
|---|---|---|
| Core | Material | Tensile silicone |
| Color | Orange | |
| Conductive Layer | Material | Silver Plated Aluminum |
| Silicone | ||
| Color | Ivory White | |
| Note | Al / Ag Type | |
Product Size
| Part No. | Size | ||
|---|---|---|---|
| O.D. | I.D. | Standard Length | |
| (mm) | (mm) | (m) | |
| UV O10J-03 | 1.0 | (0.5) | 100 |
| UV O135J-03 | 1.35 | (0.55) | 50 |
| UV O15J-03 | 1.5 | (0.6) | 50 |
| UV O20J-03 | 2.0 | (0.7) | 50 |
| UV O25J-03 | 2.5 | (1.0) | 50 |
| UV O30J-03 | 3.0 | (1.5) | 50 |
| UV O40J-03 | 4.0 | (2.4) | 30 |
