Sield Foam 22TS - Square Type
Sield Foam 22TS - Square Type Square Type
- Conductive Fabric
Product Overview
- Black
- Conductive soft gasket
- Halogen free
Product Description

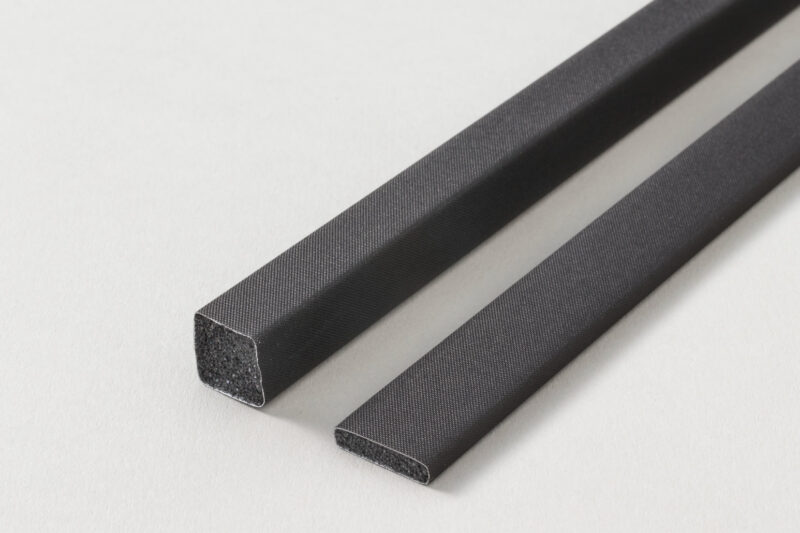

- Shield Foam – Conductive soft gasket, black
- Polyurethane foam gasket wrapped in conductive fabric
- With conductive acrylic adhesive or non-conductive acrylic adhesive
- UL94 V-0 certified (without adhesive tape)
- RoHS compliant
- Halogen free based on IEC61249-21
| Item Name | 22TS | |
|---|---|---|
| Color | Black | |
| Material | Conductive Layer | Polyester Cloth / Cu+Ni plated / Special Coating |
| Core Material | Polyurethane Foam | |
| Surface Resistivity | ≦0.1 Ω／□ | |
| Adhesive Tape | Conductive Acrylic Adhesive or Acrylic Adhesive |
|
| Product Width | 2mm ～ 22mm | |
| Product Hight | 0.5mm ～ 20mm | |
| Standard Length | 1m | |
| Note | UL94 V-0 ※Without adhesive tape Halogen free based on IEC61249-2-21 |
|
